|Place of Origin:||Nanjing|
|Model Number:||Heavy Duty|
|Minimum Order Quantity:||Negotiate|
|Delivery Time:||30 days|
|Name:||Large Scale Drive In Drive Through Racking System For Workshop||Origin:||Nanjing|
drive through racks,
drive in racking system
ISO&CE Approved China Warehouse storage heavy duty drive in pallet rack

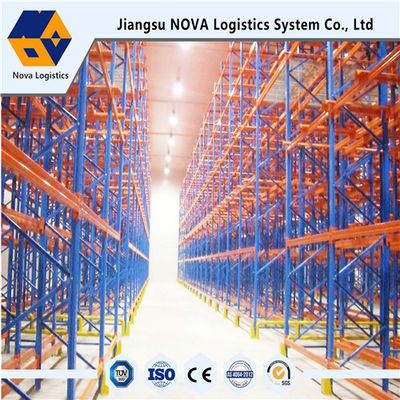

Drive-in/Drive Through racking offers the highest possible densities of pallet storage, with the lowest selectivity. Consequently, it is ideal for fast moving product which moves on a "pallet-in pallet-out basis." Drive-in /Drive Through racking is a series of tunnels with rails on either side to hold the pallet. Lift trucks can drive into any given tunnel to retrieve or put away pallets. The first pallet in is the last one out unless a Drive-Through system is used whereby pallets can be loaded or retrieved from either side.
1.Structural angle rails "guide" pallets, ease of use and durability
2.Flared rail entry ends allow easy bay access
3.Space-saver low profile arms increase clearance and decrease possible product damage
4.Welded rail stops prevent loads from being pushed off, improving safety
5.75mm vertical adjustability
High density racking system, with virtually unlimited depth.
· No specialized fork lift trucks needed.
· No aisles needed between rows of rack for fork trucks to drive up and down. Fork trucks drive directly into the rack.
· Racking is less expensive than dynamic storage solutions (pushback / Gravit flow,CLS etc.).
· High density storage can be achieved in a relatively small space.
· Drive-In rack is engineered for quality, stability and durability.
· Level storage medium - no concerns about height restrictions as with sloping systems.
|Item name||selective pallet rack |
|Material||High grade cold rolled steel|
|Height||2.0m-3m||Width||0.6, 0.8, 1.0m|
|color||Standard color blue, orange, grey yellow, green, red||Upright section||55*60/60*80/70*90mm, Ect|
|beams||30*50/40*60/50*80/50*110mm, Ect||selective pallet rack Thickness||0.8mm|
|Surface||Powder Coating||Feature||Corrosion Protection|
- Drawing (if available) of rack; if not, we can offer CAD design service for you
- Size of your warehouse (Length x Width x Clear height)
- Size (W*D*H) & weight of pallet (after loading)
- How many pallets each layer you would like
- How many layers you would like
- The color you want
What is delivery times?
This depends on the product. Typically standard products are delivered within 15 days.
The delivery time of the special products is according to the time of setting up of the tooling.
Drive- in Racking System is the best solution for small warehouses and cold rooms.
It allows optimum utilization of floor space and storage volume by storing several pallets in depth of the channels.
Drive-in system is designed for storing homogenous products.
The pallets are stored as a block with one access where forklift entering with pallets and store them on the rails.
Drive-in with one access also calls as LIFO (last in first out) system.
Drive In / Drive Thru Warehouse Drive In Pallet Rack Features and Benefits include:
(1).Highest density pallet racking system available.
(2).Makes best use of the available surface and height space than any other system.
(3)Allows for load flexibility in regards to both weight and volume.
