| Place of Origin: | Nanjing |
| Brand Name: | NOVA |
| Certification: | ISO, CE |
| Model Number: | Heavy Duty |
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Standard |
| Delivery Time: | 30 days |
| Name: | Heavy Duty Drive In Racking With CE&ISO Guarantee / Nanjing Origin Drive Through Racks | Origin: | Nanjing |
|---|---|---|---|
| Warranty: | 10 Years | Brand: | NOVA |
| Scale: | Heavy Duty | Loading Capacity: | OEM |
| Material: | Q235 | ||
| High Light: | 200kg/Layer Drive In Pallet Racking,Powder Coating Drive In Racks,Q235 Drive In Racks |
||
Drive-in Racking System/First-in/Last out/Nova Brand/CE/ISO 9001 Certificate /Manufacturer

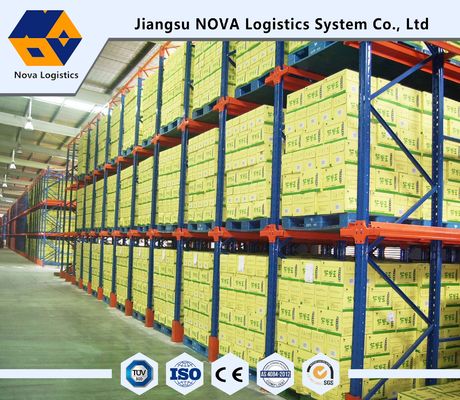

Drive-in/Drive Through racking offers the highest possible densities of pallet storage, with the lowest selectivity. Consequently, it is ideal for fast moving product which moves on a "pallet-in pallet-out basis." Drive-in /Drive Through racking is a series of tunnels with rails on either side to hold the pallet. Lift trucks can drive into any given tunnel to retrieve or put away pallets. The first pallet in is the last one out unless a Drive-Through system is used whereby pallets can be loaded or retrieved from either side.
Advantages:
1.Structural angle rails "guide" pallets, ease of use and durability
2.Flared rail entry ends allow easy bay access
3.Space-saver low profile arms increase clearance and decrease possible product damage
4.Welded rail stops prevent loads from being pushed off, improving safety
5.75mm vertical adjustability
6.Welded aisle-load arms to eliminate hazardous load projections into aisles
7.Grade 5 hardware
Features and benefits:
• Less aisles are required
•“Last-in, first-out” storage systems
• Lowest cost, highest density pallet storage rack system available
• Ideal for storing similar products on like-sized pallets, or for cooler and freezer applications
• Designed to store many pallets of the same item that are not age sensitive
• Great for storing seasonal or slow moving items
• Increases storage density by up to 75%
| Item name | selective pallet rack
| Material | High grade cold rolled steel |
| Height | 2.0m-3m | Width | 0.6, 0.8, 1.0m |
| Length | 2.5m | Load capacity | 200-3000kg/layer |
| color | Standard color blue, orange, grey yellow, green, red | Upright section | 55*60/60*80/70*90mm, Ect |
| beams | 30*50/40*60/50*80/50*110mm, Ect | selective pallet rack Thickness | 0.8mm |
| Surface | Powder Coating | Feature | Corrosion Protection |
| Market | global | OEM | available |
- Drawing (if available) of rack; if not, we can offer CAD design service for you
- Size of your warehouse (Length x Width x Clear height)
- Size (W*D*H) & weight of pallet (after loading)
- How many pallets each layer you would like
- How many layers you would like
- The color you want
What is delivery times?
This depends on the product. Typically standard products are delivered within 15 days.
The delivery time of the special products is according to the time of setting up of the tooling.
Product Description
Drive- in Racking System is the best solution for small warehouses and cold rooms.
It allows optimum utilization of floor space and storage volume by storing several pallets in depth of the channels.
Drive-in system is designed for storing homogenous products.
The pallets are stored as a block with one access where forklift entering with pallets and store them on the rails.
Drive-in with one access also calls as LIFO (last in first out) system.
Drive In / Drive Thru Warehouse Drive In Pallet Rack Features and Benefits include:
(1).Highest density pallet racking system available.
(2).Makes best use of the available surface and height space than any other system.
(3)Allows for load flexibility in regards to both weight and volume.
