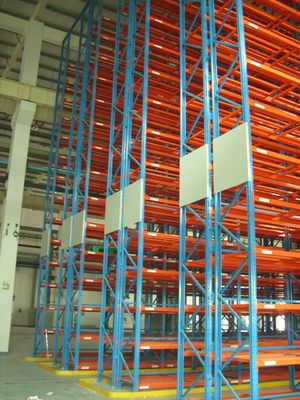

Narrow Aisle Pallet Racking Vna Racking System Customized Loading Capacity

Narrow Aisle Pallet Racking Vna Racking System Customized Loading Capacity

Narrow Aisle Pallet Racking Vna Racking System Customized Loading Capacity
Narrow Aisle Pallet Racking Vna Racking System Customized Loading Capacity
Narrow Aisle Pallet Racking Vna Racking System Customized Loading Capacity
Product Details:
Place of Origin: China
Brand Name: NOVA
Certification: ISO9001; ISO14001; CE
Model Number: NH
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: negotiate
Packaging Details: Standard export pacakge
Delivery Time: Typically standard products are delivered within 20 days.
Supply Ability: 8000 TONS PER MONTH
Contact Now
Detailed Product Description
MOQ: 3tons Pitch: 75 Or 76mm Or 3"(76.2mm)
Loading Capacity: 1-4tons Capacity /beam Level. Certificate: ISO, CE
Loading Capacity: Customized Factory: NOVA
High Light:

narrow aisle pallet racking

,

narrow aisle racking


VNA Pallet Racking Pallet Rack

Production:
1. Length
Length of a pallet racking unit has something to do with how many pallets per tier and the pallet size. For example, if the pallet size is "L1200*W800*H150mm", 800mm is the entry for forklift, and two pallets per tier, then length for the pallet rack unit should be longer than 1600mm, 1800mm or so is OK.

2. Width
Width of a pallet racking unit still relates to the pallet size. Still,"L1200*W800*H150mm", 800mm is the entry, in this case, width of the rack should be shorter than 1200mm, 1100mm or 1000mm are OK.

3. Height
Height of a pallet racking unit per tier depends on how high your goods together with the pallet height. Total height of a unit is to the customer's specific requirement.

4. Load capacity
Load capacity is an important factor for designing a rack. It is the weight of your goods with pallets.

The above information are the basic factors for designing a racking system.



Narrow aisle racking (VNA pallet racking system) is a great solution for those looking to add storage space to their warehouse without physically moving their operations. By reducing unnecessary aisle space, you can make more room for more racks. A narrow aisle racking system enables you to set up high-density storage by making better use of your floor area and roof height.

VNA pallet racking can save much space by very narrow aisle.


Surface treatment

  • Surface treatment: powder coated or galvanized

  • Max powder coaing line 13m in our factory

Material:

 High-quality Q235B steel plate purchased from the big steel Group in China.

Others:

  • MOQ: 3tons

  • Pitch: 75 or 76mm or 3"(76.2mm).

  • Delivery time: as common 20 days for 2 or 3 40HC

  • Payment term: T/T (30%) or L/C at sight



Our Service
We offer professional consultation and assist you in designing a storage system that best suits you.
We also offer:
Professional CAD Drawings meet your specific needs and requirements.
After Sale Service:
1.Professional engineer and application specialists respond to your requests efficiently;
2.Online via SKYPE What`s APP; Also through mail, phone message and fax if network is not accessible for customer;
3.We provide installation instructions for help;Record customer respond,suggestion,requirement.


Narrow Aisle Pallet Racking Vna Racking System Customized Loading Capacity 0


 Please inform us the listed information for a quick quotation of VNA pallet racking:
1) drawings of your warehouse or rack system
2) Your pallet size
3) How many start bays and add on bays you want.
4) Clear warehouse height or Max forklift lifting height
5) Loading capacity of each level
6) Aisle width needed for forklift operation, as common 1700mm

We can provide free and professional warehouse rack Auto CAD drawing design based on your these above info, to solve your warehouse storage solutions.


Narrow Aisle Pallet Racking Vna Racking System Customized Loading Capacity 1
FAQ

Q: May I know the status of my order?
A: Yes .We will send you detailed information and products photos at different production stage of your order. You will get the latest information in time.

Q: Are samples available?
A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients.

Q: How about the color?
A: Standard color is RAL5010 blue, RAL2004 orange, RAL7035 grey.
If you have any other questions, please freely contact us, we will provide our largest support to your any project! Thanks and welcome to send to us your specific needs for pricing, also welcome to visit our factory at any time.
