|Place of Origin:||China|
|Certification:||ISO9001; ISO14001; CE|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Standard export pacakge|
|Delivery Time:||Typically standard products are delivered within 20 days.|
|Supply Ability:||8000 TONS PER MONTH|
|Feature::||Corrosion Protection||Raw Material::||Steel|
|Place Of Origin:||Nanjing||Surface Treatment:||Epoxy Coating|
|Loading Capacity:||Customized||Warranty:||10 Years|
narrow aisle pallet racking,
drive through pallet racking

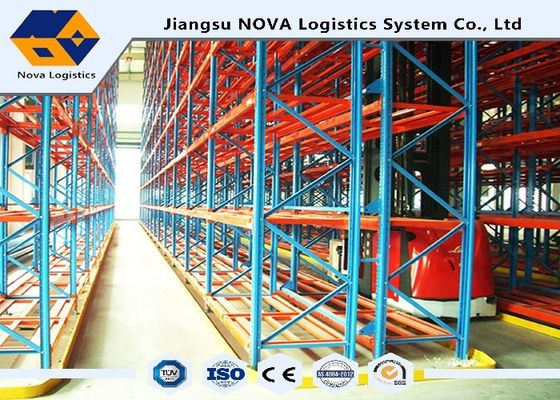

Warehouse Industrial VNA Pallet Racking is taken as a suitable and economical storage solution:
1. All the layers can be fix at any height only if it's times of 75mm, user will adjust different height for various pallet storage;
2. We supply quite big sections of upright to suit special needs;
3. Standard and special dimensions are both available, you just put forward your requirement and we design, we give the solutions;
4. Epoxy powder coated and galvanized surface treatment to prevent against corruption;
5. Pitch is with 75mm and 76.2mm(3''), compatible with European top brands like Dexion, Schaefer, etc.
|1. Features||1) Beam levers are adjustable in 75mm pitch interval.|
|2) Different sizes,various specifications & colors are available.|
|3) Maximizes space utility ratio while retaining optimum product accessibility.|
|4) Strength and rigidity prevents compression damage to goods.|
|5) Bottom level of pallets can be stored on the floor, lowering structure costs.|
|2. Material:||High grade Q235B Cold Rolled Steel|
|3. Surface Treatment:||High-quality Powder Coating Finishing.|
4. Load Capacity &
|1) Loading capacity:500-4000 kgs /pair beam.|
|3) Depth:single row 800-1200mm,back-to-back 1800-2700mm|
|4) Length: 1500/2000/2500/2800/3000/3300/3500/3600mm|
|Special sizes also available to specific storage needs.|
|5. Main Parts Specs(mm):||1) Upright: 90x70x2.0mm|
|3) Horizontal & diagonal bracings: 40x24x1.5mm|
|4) Upright Footplates: 120x120x3.0mm|
|5) Safety locking pins|
|6) Bolts & nuts|
|7) Anchors and all necessary components.|
|6. Certificates.||CE certified, ISO9001,|
|7. Quick Delivery||
Within 15 workdays (negotiable), according to quantity.
1.Upright: NH1 TYPE (Upright 80),NH2A TYPE(Upright 90A),NH2B TYPE(Upright 90B),NH3 TYPE(Upright 100) ,NH4 TYPE(upright 120),NH5 TYPE(upright 140) ,NH6 TYPE(Upright 160) or customized by clients.
2.Beams are divided into Box beams and Step beams.
3.Sectional sizes of box beams include: K80,K90,K100,K110,K120,K140,K150,K160.
4.Sectional sizes of step beams include:PK95,PK115,PK135,PK155.
5.Pallet support bar: regular type and cut-in adjustable types.
1. Q: Are you a factory or trading company?
A: We are a factory. Heavy Duty Storage Rack for Industrial Warehouse Storage is one of our featured products.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Nanjing City, Jiangsu Province, China, close to Shanghai. You can fly to Nanjing or Shanghai airport directly. You are warmly welcome to visit us whenever you are available!
