|Place of Origin:||China|
|Certification:||ISO9001; ISO14001; CE|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Standard export pacakge|
|Delivery Time:||Typically standard products are delivered within 20 days.|
|Supply Ability:||8000 TONS PER MONTH|
narrow aisle pallet racking,
narrow aisle racking

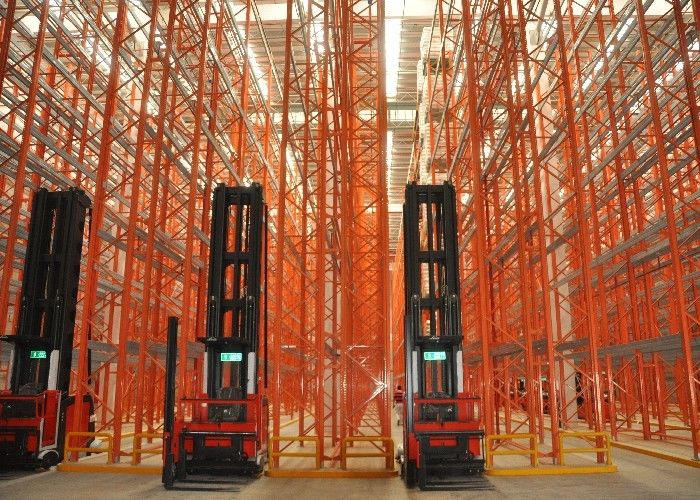

Very Narrow Aisle (VNA) is the use of selective pallet racking in a tighter configuration to provide maximum space utilization within a storage facility.
Aisle pallet racking is also called Location pallet racking which is of cut-in composite structure; the upright mande by continuous punching and rolling; the frame is assembled by uprights and bracings and beams are fixed to uprights by hooks.
These systems typically operate in conjunction with wire-guided or rail-guided reach-truck systems. A wire-guided system consists of a wire embedded in the concrete floor that provides tracking for the reach-truck. A rail-guided system consists of angle iron bolted to the floor down the length of each row. Another advantage of selective pallet rack systems is the easy accessibility they provide to all products at all times. Such accessibility is important if the inventory is rapidly depleted and restocked (called quick turnover). A selective pallet rack system is commonly used in a “big-box” distribution application, as well as in retail store inventory rooms, cold storage applications, wholesale stores, etc.
Advantages of VNA racking
1) Pallets can be located, accessed and moved individually.
2) Infinitely adjustable and offering a wide range of options and components.
3) Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
4) Strength and rigidity prevents compression damage to goods.
5) The width of Narrow aisle is generally between 1400 mm to 1800mm.
Packing Details : Packed by wooden bars, crates, metal stripes, films for bulk goods, and cartons for accessories. Package is also customized. A 40'GP is available for around 20-25 tons materials and accounts for up to 55 CMB
Delivery Details :Within 30 days
A: 1) Our Excellent ServiceFor a quick, no hassle quote just send email to us
Contact Person: Mr. Jerry
