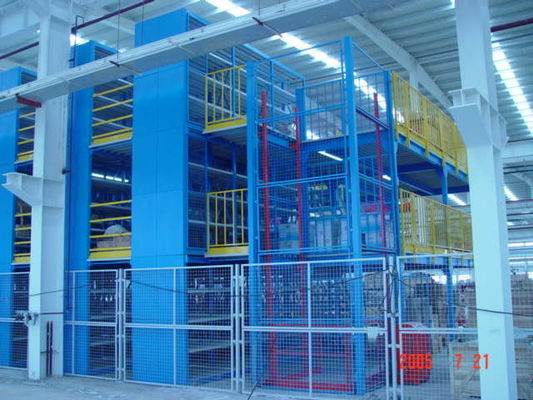

Heavy Duty Multi Tier Mezzanine Rack Customized Loading Capacity Long Operating Life

Heavy Duty Multi Tier Mezzanine Rack Customized Loading Capacity Long Operating Life

Heavy Duty Multi Tier Mezzanine Rack Customized Loading Capacity Long Operating Life
Heavy Duty Multi Tier Mezzanine Rack Customized Loading Capacity Long Operating Life
Heavy Duty Multi Tier Mezzanine Rack Customized Loading Capacity Long Operating Life
Product Details:
Place of Origin: China
Brand Name: NOVA
Certification: ISO9001; ISO14001; CE
Model Number: NH
Payment & Shipping Terms:
Minimum Order Quantity: Negotiate
Price: Megptiate
Packaging Details: Standard
Delivery Time: 30 days
Supply Ability: 8000tons/month
Contact Now
Detailed Product Description
Name: Multi Tier Heavy Duty Industrial Shelving With Powder Coating Scale: Heavy Duty
Material: Q235B Brand: NOVA
Place Of Origin: Nanjing Type: Multi Tier Mezzanine Rack
High Light:

multi tier racking system

,

adjustable metal shelving

Customer Size Multi Tier Mezzanine Rack with profeesional engineer team

Metal Mezzanine racking

A professional logistics company is specialized in researching developing-designing manufacturing and installing modern logistics facilities. It boasts of rich technical force state-of-the-art manufacturing facilities mature manufacturing technologies and sound quality assurance system.13 years after its foundation stable now become a leading shelf manufacturing in the northern part of China already.



A modular floor enables you to double your available square metres without the need for expensive building extensions or costly moving. If you wish to subdivide your additional space, the floors can be fitted with partitioning walls, screen walls, modular racking and dropped ceilings. This way subdivided spaces can be created underneath as well as on top of mezzanine floors. Of course, all types of variations are possible, for example a combination of a floor on frames and a free-standing floor. We will translate your wishes into a practical working solution.



Mezzanine platform is also called work platform. The platform made of steel , it usually consists of beams, columns, plates and other components which made of steel and steel plates. Each part is connected with weld, screw or rivet. Steel mezzanine widely used in industry, it helps to make a high-ceilinged space feel more personal and less vast, and can create additional floor space.



Introduction

This kind of garret can be installed or dismantled freely from one warehouse ground and distance between columns is less than 6000mm. Height of first level is around 3000mm, and H 2500mm for second and third floor level. Loading capacity of floor can be designed to be no more than 1000kg/ square meter.


Spec Parameter

Product Name
Industrial warehouse mezzanine rack
Material
Steel Q235
Loading Capacity
Customized and up to 1000 Kg / square meter
Racking Height
Customized and up to 9000 mm
Racking Depth
As your requirement
Beam Length
As your requirement
Racking Finish
Column (Powder Coated or Pre-galvanized) + Bracing (Powder Coated or Pre-galvanized) + Beam (Powder coated)
MOQ
1 pc
Payment
TT , LC , Western Union , Paypal are available
Certificate
CE,ISO,SGS,AS 4084
Delivery Date
Within 15 - 20 days after deposit



Features:

1. Our mezzanine rack is configured with soild joists, performing with long operating life.

2. It can be designed in 6layers with the height of 17meters at maximun.

3. Aside from the general parts, this multi-tier racking is also outfitte with some self developed parts, like large double C boxed beam,side fixed handrail, etc.

4. It is convenoent to assemble and disassemble out loft rack without outsite driling. Moreover, the side fixed handrail is not easy to shake.



Heavy Duty Multi Tier Mezzanine Rack Customized Loading Capacity Long Operating Life 0
