Industrial Storage Cantilever Racking Systems With Light Duty 50 - 200kg

Industrial Storage Cantilever Racking Systems With Light Duty 50 - 200kg

  • Industrial Storage Cantilever Racking Systems With Light Duty 50 - 200kg
  • Industrial Storage Cantilever Racking Systems With Light Duty 50 - 200kg
Industrial Storage Cantilever Racking Systems With Light Duty 50 - 200kg
Product Details:
Place of Origin: China
Brand Name: NOVA
Certification: ISO9001; ISO14001; CE
Model Number: cantilever
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiate
Packaging Details: Standard exporting package
Delivery Time: 15 to 20 days
Supply Ability: 8000 TONS PER MONTH
Contact Now
Detailed Product Description
Feature: Double-side Arms Surface Treatment: Powder Coating
Usage: Warehouse; Out Of Door Place Of Origin: Nanjing
Application: Warehouse Capacity: Customized
High Light:

heavy duty cantilever racking

,

cantilever racks for steel

2017 industrial cantilever racks warehouse cantilever racking for storage

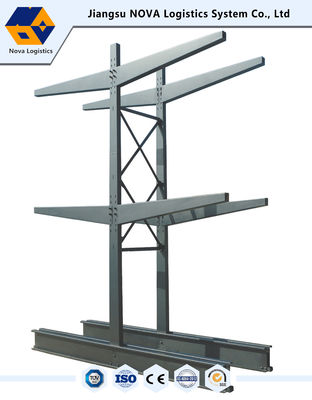

Cantilever rack

Cantilever Racks are ideal for storage of long, bulky products such as carpet rolls, lumber, pipe, tubing and etc.

All cantilever uprights can be used as single-sided or dual-sided designs and the rows of uprights can be any length required. The cantilever arms can be modified flexibly for stored goods with different heights and loading requirements. Subsequent adjustments and adaptations can be made without tools.



1. Features 1) Beam levers are adjustable in 75mm pitch interval.
2) Different sizes, various specifications and colors are available according to your different needs.
3) Maximizes space utility ratio while retaining optimum product accessibility.
4) Strength and rigidity prevents compression damage to goods.
5) Bottom level of pallets can be stored on the floor, lowering structure costs.
2. Material: High grade Q235B Cold Rolled Steel
3. Surface Treatment: High-quality Powder Coating Finishing.
4. Load Capacity & Dimension: 1) Light duty: 50-200kg
2) Medium duty: 200-800kg
3) Heavy duty:500-2000kg
5. Main Parts Specs(mm): 1) Upright: 80*200*T3.0mm
2) Arms: 130mm(Bottom)*T3.0;80mm(Top)*T3.0mm
3) Back bracings:dia 8mm;
4)Row bracing:40*24*T2.0mm
5) Anchors and all necessary components.
6. Certificates. CE certified, ISO9001,



We can do as your requirement or drawing



Cantilever Racking Features

  • Upright is usually made of H type steel or cold rolling steel, square tube, cold rolling steel or H type steel are used to make arms.
  • Cantilevers are assembled to upright by composite type or bolts & nuts which is also for the fixation between base and uprights. Level height is adjustable.
  • Loading and unloading of goods can be done manually or by forklifts.
  • The height of cantilever racking is from 2500mm to 6000mm,
  • Arm length is shorter than 1500mm, and loading capacity is no more than 1000kg per arm

Industrial Storage Cantilever Racking Systems With Light Duty 50 - 200kg 0Industrial Storage Cantilever Racking Systems With Light Duty 50 - 200kg 1

FAQ:

Q1: Do you have any request about the order quantity?

A1: Any order quantity is accepted. But small order would take more shipping cost;





Q2: What is the term of payment?

A3: Generally, 30% T/T down payment and balance before shipping, other terms could be further discussed.
